제품 상세 정보:
|
| 사전 설정: | 80 (옵션의 경우 245) | ONVIF: | 지원하다 |
|---|---|---|---|
| 작업 온도: | -25℃~+55℃ (-40℃ 선택) | 소비: | 10W,808nm, 근적외선 |
| 비디오 형식: | H.264/MPEG4/MIPEG | 재료: | 일체형 알루미늄 합금 하우징 |
| 치수: | 200mm X 100mm X 100mm | 적외선 레이저: | 808nm |
| 강조하다: | long range infrared camera with NIR,high load capacity infrared camera,ONVIF compatible infrared camera |
||

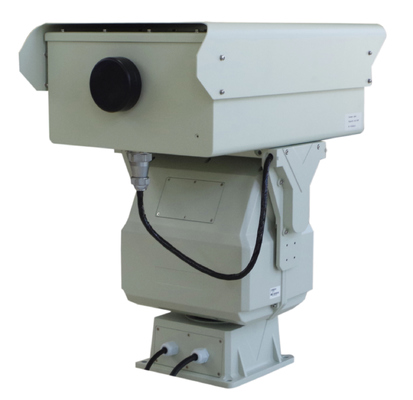

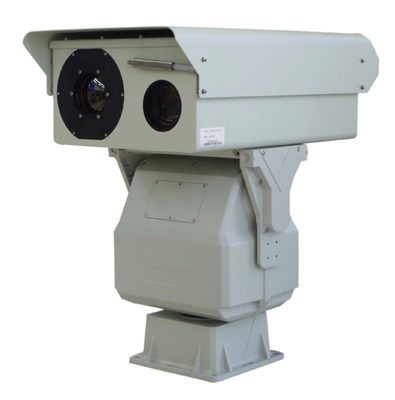

The HP-TTVC6516-2150-AFP-IP smart dual-band camera is based on the latest fifth-generation uncooled infrared technology and high-definition visible light imaging technology, designed for remote day and night monitoring. Infrared thermal imaging with high sensitivity 640 × 512 resolution 17μm ultra-fine resolution uncooled focal plane imaging detector, and AS optical technology designed miniaturized infrared lens, advanced digital circuits and image processing algorithms available Fine and smooth image; visible light adopts full HD color black and white dual mode low illumination CMOS sensor and 30 times compact continuous zoom lens, the volume of the whole machine is greatly reduced, which brings great convenience to users' installation applications, supplemented by 360 The full-scale pan/tilt can realize search and observation within 4000m. The internal industrial-grade embedded control electronic system realizes zooming, focusing, mode switching, pan/tilt/rotation high stability control of the camera, and the overall casing adopts super-strong aluminum alloy to achieve IP66 protection level, ensuring the equipment in the harsh environment in the field. Medium and long term operation.
As an Infrared Thermal Imaging Camera, this product sets a new standard in surveillance technology, offering unparalleled visibility in low-light or no-light conditions. The infrared capabilities of this camera enable users to detect heat signatures and identify objects or individuals with precision, enhancing overall situational awareness.
For those in need of reliable surveillance solutions, the Long Range Infrared Camera is a top choice. Its advanced features, including Infrared Surveillance Cameras, make it a versatile and powerful tool for a wide range of applications. With its high-quality construction and innovative technology, this camera delivers exceptional performance and peace of mind for users seeking top-tier surveillance capabilities.
| Model | TTVC6516-2150 |
| Detection |
Vehicle 13,000 m Human 4,800 m For fire 6,000 m (2m X 2m ) |
| Recognition | Vehicle 3,400 m Human 1,300 m |
| Sensor | 5th generation UFPA VOx sensor |
| Resolution | 640*512 |
| Spectral response | 7.5～14μm |
| NETD | 50mK(@25℃ F1.0) |
| Focal length | 31～155 mm |
| FOV | 20°×15°～4°×3° |
| Lens control |
1. Zoom: Electric zoom 2. Focus: manual / auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, precise high speed 3. Optical machine: 3CAM mode and AS+DOE optical machine structure, high infrared transmittance, no virtual focus and small axis in the zoom process |
| Image Processing |
1. Image enhancement: SDE digital image enhancement technology to enhance image details 2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities 3. Image parameters: AGC automatic gain control, brightness, contrast 4. Electronic zoom: 2×, 4×, support global synchronous display 5. NUC correction: automatic / manual correction, background correction |
| Visible Camera |
1. 1/2.8'' target surface star-level CMOS, integrated ICR dual filter day and night switching 2. Resolution: 2 Mega pixels, 1920×1080 3. Illumination: color: 0.05 Lux; black and white: 0.01Lux 4. Encoding: H.265/H.264 video format, support multi-stream 5. Video bit rate: 32Kbps ~ 16Mbps, 60Hz 30 frames / sec 6. Support SD card local storage, support motion detection, occlusion alarm, cross-border detection, regional intrusion detection Support white balance, electronic shutter, strong light suppression, 3D digital noise reduction, wide dynamic, anti-infrared over exposure |
| Visible Lens |
1. Focal length: 8 ~ 500mm, 2 mega pixel power zoom 2. Focus: manual / auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, precise high speed 3. Aperture: Automatic 4. Day and night type light: 0.4-0.75um visible light wide spectral window and 0.8-0.95um near infrared laser narrow spectrum window day and night independent double pass light window to improve imaging light and stray light signal to noise ratio Preset position: precision potentiometer, zoom focus feedback |
|
Laser Source (optional) |
1. Power: 8W 2. Wavelength: 810nm military grade infrared laser 3. Illumination angle: 1 ° ~ 20 °, DSS digital step lighting angle control technology 4. Homogenization: GHT-II high-definition lens group ultra-homogenization patented technology, brightness balance of all focal lengths is >92% 5. Laser safety: ZQB safety laser beam processing patent technology, in line with international IEC60825 safety standards |
| Hot target intelligent alarm |
1. 255 adjustable alarm threshold values 2. Adjustable monitoring area, auto detection of target size 3. 1-16 alarm targets, auto selection of the most obvious one 4. Two types of alarm: screen display and audible alarm 5. Less than 0.01s alarm response ensures no omission 6. All parameters can be modified via OSD menu, universally adaptable 7. Optional IP network coding transmission, and provide free platform and SDK 8. Dedicated platform: (Optional with special fire prevention warning platform, with automatic scanning, alarm, GIS positioning, fire dynamic evolution, fire fighting strategy, etc., forming a professional system) |
| Housing |
1.Material: integral aluminum alloy housing, stainless steel, anti strong wind ; 2.Structure: Integral double window 3.Window glass: 4mm optical glass ,transmission＞98% ； 4.Surface coating: PTA three-proofing coatings , 5.Protection:IP66(IP67 optional ) 6.Applied thermal balance design and wide temperature electronics ,which could operate under high / low temperature ; 7.Interface : waterproof aviation connector ; |
| PT |
1. Load: 30kg PTZ 2. Range: Pan 0 ~ 360 °, Tilt -45 ° ~ +45 ° 3. Speed: horizontal 0.01 °/ S ~ 30 °/ S, pitch 0.01 °/ S ~ 15 °/ S, support lens focal length speed adaptive function 4. Preset position: 255, support lens zoom, focus preset 5. Accuracy: ±0.1° 6. Patrol sweep: support 6 cruises, 1 apple peel, 1 line sweep 7. Watch: Preset / Auto Cruise Route / Auto Scan Route 8. Power-off memory: support (recoverable position before power-off, preset position status, cruise status, line sweep status) 9. Bearing information: support angle query return, positioning 10. Zero point correction: support north direction zero point remote correction function 11. Power consumption: about 80W 12. Weight: 15kg |
| Interface |
1. Network interface: 1 way RJ45, 10/100 Base-T adaptive (integrated video output and RS422/485 control communication) 2. Network protocol: support TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2. 0, GB28181 and other network protocols 3. Power supply: AC/DC24V, anti-reverse protection 4. Physical interface: alloy waterproof aviation plug |
| Enhanced Function |
1. Glare protection: support, anti-sun burn function 2. Temperature correction: no thermal image design, imaging resolution is not affected by temperature 3. Scene mode: support multiple configuration scenarios, adapt to no environment application 4. Auto focus tuning: support remote auto focus precision parameter adjustment, adapt to different scenes 5. Day and night cruise: day and night group cruise different preset groups, day cruise 1-40 preset position, night cruise 41-80 preset position, automatically switch day and night according to the photosensitive state, adapt to different time and space scenes 6. Lens servo: support lens preset position, focal length return, focus positioning function 7. Parameter setting: OSD menu remote call operation 8. Remote maintenance: support embedded program remote upgrade for easy after-sales maintenance |
| Optional Function |
1. Wiper: (optional built-in wiper) 2. Window cleaning: (optional external small spray device, self-storing water, no damage to ice, no impact on host function) 3. Expansion module: (optional Beidou / GPS, laser ranging and other extended functions) 4. Optical network: (optional built-in fiber module, single-mode fiber output, improve anti-interference) |
| Intelligence Function |
1. Support regional intrusion detection 2. Support cross-border intrusion detection 3. Support multi-scene group cruise detection 4. Support 3D frame selection zoom / positioning 5. Support automatic tracking 6. Support panoramic stitching 7. Support radar linkage (Note: The above functions need to be coordinated with the key area prevention software) |
| Power & Weight |
1. Total power consumption: 150W 2. Total weight: 35kg (including Pan/Tilt) |
| Environment indicator |
1. Working temperature: -25 ℃~ +60℃ (optional -40 ℃) 2. Storage temperature: -45℃ ~ + 70 ℃ 3. Humidity: <90% 4. Earthquake resistance: 0.2g (according to the 5.4 severity level 2 of GB/T15211-2013) 5. Impact resistance: 15g (according to the 5.3 severe level 3 of GB/T15211-2013) 6. Lightning protection: built-in surge protection of interface circuit, power supply 4000V, signal 2000V 7. Anti-salt fog: at pH 6.5 ~ 7.2, continuous spraying for 96 hours, no change in surface Protection level: IP66 |
The Long Range Infrared Camera by Hope-Wish, model HP-TVC, originated from China, is a high-quality surveillance solution suitable for a variety of applications. With a resolution of 1920x1080, this camera ensures clear and sharp images for enhanced monitoring. The IP66 feature makes it weatherproof, allowing it to withstand various environmental conditions.
One of the standout features of this camera is its long-range Infrared Night Vision capability, providing clear footage even in low-light or complete darkness conditions. The Infrared Camera Lighting ensures that the camera captures detailed images and videos, making it ideal for nighttime surveillance.
Equipped with Infrared Remote Control, users can conveniently adjust camera settings and angles remotely, enhancing ease of use and flexibility in surveillance operations. The camera also supports Onvif, enabling seamless integration with other compatible devices and systems for a comprehensive surveillance network.
The Long Range Infrared Camera is designed to handle a load duty of up to 50kg, ensuring durability and stability in various installation setups. With 80 preset positions (245 for option), users can easily customize and optimize the monitoring angles for comprehensive coverage of the surveillance area.
Due to its advanced features and robust build quality, the Long Range Infrared Camera is suitable for a wide range of scenarios and occasions. It is ideal for outdoor surveillance in areas such as large properties, industrial sites, parking lots, and critical infrastructure where reliable monitoring is essential.
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Our Product Technical Support and Services for the Long Range Infrared Camera include:
- Installation assistance and guidance
- Troubleshooting support for any technical issues
- Software updates and firmware upgrades
- Repair and maintenance services
- Training and user manuals for optimal usage
Q: What is the brand name of this Long Range Infrared Camera?
A: The brand name is Hope-Wish.
Q: What is the model number of this Long Range Infrared Camera?
A: The model number is HP-TVC.
Q: Where is this Long Range Infrared Camera manufactured?
A: This camera is manufactured in China.
Q: What is the maximum range of this Long Range Infrared Camera?
A: The maximum range of this camera is 300 meters.
Q: Does this Long Range Infrared Camera have night vision capabilities?
A: Yes, this camera is equipped with powerful night vision capabilities for clear imaging in low-light or dark conditions.
