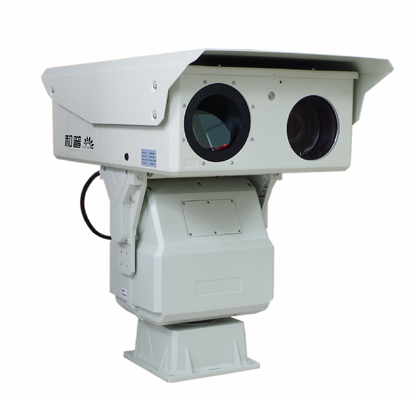

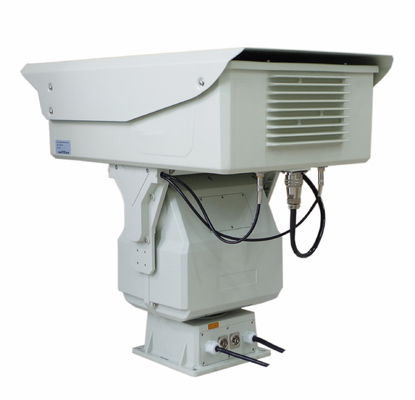

30kg Load Duty Long Distance Dual Sensor Thermal Camera equipped with Aviation Water-Proof Connector and 25mm Lens

인증
중국 Jinan Hope-Wish Photoelectronic Technology Co., Ltd. 인증
중국 Jinan Hope-Wish Photoelectronic Technology Co., Ltd. 인증
고객 검토
1. 감시의 수 그리고 비용을 삭감하고 있는 동안 훔쳐 도둑을 붙잡으십시오. 2. 우리는 최고 감시 사진기가 있고 밤에 품목을 명확하게 봅니다

—— 기독교

나는 감시가 자는지 볼 수 있습니다. 그것에는 그(것)들을 있어 그들의 포스트를 잡담에게 맡기기 보다는 오히려 깨어있는 유지하고는과 그들의 일을 하기에 있는 거창한 효력이

—— 리처드

제가 지금 온라인 채팅 해요

30kg Load Duty Long Distance Dual Sensor Thermal Camera equipped with Aviation Water-Proof Connector and 25mm Lens

30kg Load Duty Long Distance Dual Sensor Thermal Camera equipped with Aviation Water-Proof Connector and 25mm Lens
30kg Load Duty Long Distance Dual Sensor Thermal Camera equipped with Aviation Water-Proof Connector and 25mm Lens 30kg Load Duty Long Distance Dual Sensor Thermal Camera equipped with Aviation Water-Proof Connector and 25mm Lens

큰 이미지 :  30kg Load Duty Long Distance Dual Sensor Thermal Camera equipped with Aviation Water-Proof Connector and 25mm Lens

제품 상세 정보:
Place of Origin: China
브랜드 이름: Hope-Wish
인증: CE, FCC, ROHS, ISO9001
모델 번호: HP-TVC6516-2186
결제 및 배송 조건:
최소 주문 수량: 1
가격: negotiable
포장 세부 사항: 나무 케이스
배달 시간: 60-180
지불 조건: L/C, D/A, D/P, Western Union, MoneyGram
공급 능력: 한 달에 50 대

30kg Load Duty Long Distance Dual Sensor Thermal Camera equipped with Aviation Water-Proof Connector and 25mm Lens

설명
비디오 형식: H.264/MPEG4/MIPEG 작업 온도: -25℃~+55℃ (-40℃ 선택)
해결: 1920x1080 치수: 200mm X 100mm X 100mm
안개 침투: AFR, 안개 필터용 옵션 사전 설정: 80 (옵션의 경우 245)
ONVIF: 지원하다 렌즈: 25mm
강조하다:

30kg load infrared camera

,

long range infrared camera with waterproof connector

,

25mm lens infrared camera

Product Description:

  • Unique AS + DOE advanced optical continuous zoom design and 3CAM high precision optical machine design, stable and smooth zooming, which to conduct to large-scale searching and long-range recognition
  • Excellent non-uniform image correction technology with good image uniformity and dynamic range
  • SDE image detail enhancement technology, image smooth and noiseless, a variety of pseudo-color and hot black hot white polarity image mode switching, adaptability, easy to find low-contrast hidden targetse.

The Pan-Tilt-Zoom (PTZ) functionality of the Long Range Infrared Camera adds another layer of versatility to its surveillance capabilities. With a load duty of 30kg, the PTZ feature allows for precise and flexible control of the camera's positioning, enhancing its surveillance coverage and monitoring capabilities. This dynamic functionality enables users to adjust the camera's orientation and focus remotely, making it an ideal choice for surveillance tasks that require real-time adjustments and monitoring.

Constructed with an integral aluminum alloy housing, the Long Range Infrared Camera combines durability and performance in a sleek and reliable design. The housing is designed to provide protection against environmental factors and ensure the camera's longevity in various operating conditions. The aluminum alloy construction also enhances the camera's heat dissipation capabilities, allowing it to maintain optimal performance even in challenging thermal environments.

Whether used for security monitoring, surveillance operations, or specialized applications, the Long Range Infrared Camera offers advanced features and reliable performance for demanding tasks. Its versatile design and high-quality components make it a valuable asset for organizations and individuals seeking top-tier surveillance solutions. From monitoring large outdoor areas to conducting covert surveillance operations, this camera is equipped to meet the diverse needs of modern security applications.

Overall, the Long Range Infrared Camera represents the pinnacle of surveillance technology, combining advanced features, durable construction, and high-performance capabilities in a single package. With its preset of 80 (245 for option), 25mm lens, 50kg load duty, PTZ functionality, and integral aluminum alloy housing, this camera is a versatile and dependable choice for a wide range of surveillance tasks. Whether used for monitoring critical infrastructure, securing public spaces, or conducting covert surveillance operations, the Long Range Infrared Camera delivers exceptional image quality, reliability, and performance for all your surveillance needs.



Features:

  • Integrates with infrared thermal image, HD visible imaging, video coding, pan/tilt cover and control electronic system
  • Visible imaging adopts with full HD color black and white mode low illumination CMOS sensor and 30 times
  • compact continuous zoom lens
  • The latest generation of VOx detectors based on MEMS technology, detection sensitivity (NETD) up to 50mk, higher sensitivity than conventional products, to obtain more delicate picture quality, less affected by fog, rain and snow switching of laser switch and camera into day-night mode.


Technical Parameters:

Model HP-TVC6516-2186
Detection Vehicle: 13km,Human:4.8km
Identification Vehicle:3.4km, Human: 1.3km
Thermal Camera System
Sensor 5th generation FPA VOx uncooled detector
640*512 resolution (optional 384*288 resolution)
Spectral range 7.5~14μm
NETD 50mK (@25℃ F1.0)
Focal length 31mm~155mm, 5X continuous zoom, auto focus
FOV



20°X 15°~4°X3°

Image process

1. Image enhancement: SDE digital image enhancement technology to enhance image details

2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities

3. Image parameters: AGC automatic gain control, brightness, contrast

4. Electronic zoom: 2×, 4×, support global synchronous display

5. NUC correction: automatic / manual correction, background correction

Lens Control

1.Zooming: Electrical Zoom. 2.Focusing: Manual/Auto Focus

3. Optical machine: 3CAM mode and AS+DOE optical structure, high infrared over transmission, zoom process without virtual focus, smaller axis.

Visible Camera System
Camera 1/1.8” star level CMOS, 0.001lux/0.0001lux color to B/W CCD
2 MP ,1920X1080
Automatic ICR switch
H.264/H.265 MPEG4/MIPEG
32Kbps~16Mbps,60Hz30 FPS
Visible lens 11~800mm, 2MP, 72X zoom, auto focus
Optical IR correction design, diurnal focus
Housing
Material High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated
Structure Integrated single-window design
Surface coating PTA three-resistance coating, Seawater corrosion resistance
Temp. Control Built-in thermostat, design of thermal equilibrium
Interface Aviation waterproof plug
PTZ
Load Capacity 50kg
Range/Speed Range:Pan: 0~360°, Tilt: +45°~-45°; Speed: Pan: 0.01~30°/S, Tilt: 0.01~15°/S
Preset 255
Scan Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising.
Interface
Network Interface RJ45
Network Protocol Support TCP/IP, UDP, IPv4/v6; Support HTTP,RTP,RTSP,NFS,HDCP,NTP,SMTP,,PPPoE,DNS, FTP, Onvif
Power Supply AC/DC24V, anti-reverse connection protection
Environment Parameter
Working/Storage Temp. Working temperature: -25℃~+60℃(-40℃for optional); Storage temperature: -45℃~70℃
Seismic/Impact Resistance 0.2g/15g
Anti-lighting Built-in auto Fuse-protected device, Power 4000V,Signal 2000V
Weight & Power Consumption
Weight: 45kg (include PT); Power consumption: 180W


Applications:

The Hope-Wish HP-TVC Long Range Infrared Camera is a cutting-edge product originating from China that boasts impressive features suitable for a variety of application occasions and scenarios.

With its innovative design and advanced technology, the HP-TVC is ideal for use as an Infrared Reverse Camera in various settings. Its ability to capture clear video in H.264/MPEG4/MIPEG formats makes it a versatile tool for surveillance, security, and monitoring purposes.

The camera's 808nm NIR consumption ensures efficient operation while providing high-quality images even in low-light conditions. This feature is particularly beneficial for nighttime surveillance or areas with limited visibility.

One of the standout features of the HP-TVC is its fog penetration capabilities, thanks to the AFR technology. Additionally, users have the option to include a fog filter for enhanced performance in challenging weather conditions.

Constructed with an integral aluminum alloy housing, the camera is durable and reliable, making it suitable for both indoor and outdoor use. Its preset functionality of 80 (with an option for 245 presets) allows for flexible positioning and monitoring of different areas.

Whether it's for monitoring large outdoor spaces, enhancing security in commercial settings, or improving surveillance in challenging environments, the Hope-Wish HP-TVC Long Range Infrared Camera with its Infrared Camera Lens is a versatile and dependable solution.

Company:

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

30kg Load Duty Long Distance Dual Sensor Thermal Camera equipped with Aviation Water-Proof Connector and 25mm Lens 030kg Load Duty Long Distance Dual Sensor Thermal Camera equipped with Aviation Water-Proof Connector and 25mm Lens 1
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
30kg Load Duty Long Distance Dual Sensor Thermal Camera equipped with Aviation Water-Proof Connector and 25mm Lens 230kg Load Duty Long Distance Dual Sensor Thermal Camera equipped with Aviation Water-Proof Connector and 25mm Lens 330kg Load Duty Long Distance Dual Sensor Thermal Camera equipped with Aviation Water-Proof Connector and 25mm Lens 4

Support and Services:

The Long Range Infrared Camera product offers comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our dedicated team of experts is committed to providing timely assistance with setup, troubleshooting, and maintenance. We also offer training programs to help users maximize the capabilities of the camera.



FAQ:

Q: What is the brand name of this Long Range Infrared Camera?

A: The brand name of this camera is Hope-Wish.

Q: What is the model number of this Long Range Infrared Camera?

A: The model number of this camera is HP-TVC.

Q: Where is this Long Range Infrared Camera manufactured?

A: This camera is manufactured in China.

Q: What is the range of this Long Range Infrared Camera?

A: The range of this camera is [insert range information here].

Q: Does this Long Range Infrared Camera have night vision capabilities?

A: Yes, this camera is equipped with night vision capabilities for clear imaging in low light or no light conditions.
