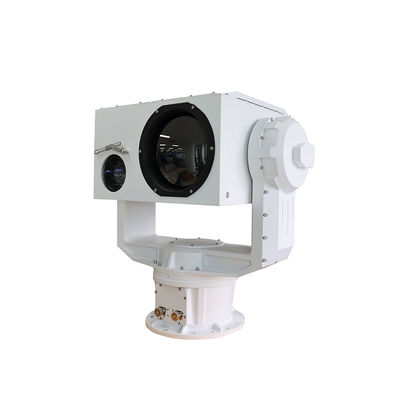

Long Range Anti Drone Thermal Camera With 640x512 Multi-Sensor Optical Platform Camera

Product Description:

The DMA series multi-sensor optical platform camera is independently researched and developed by our company. It is specially designed for the key areas surveillance such as conference centers, office buildings, prisons, airports, MIL bases, nuclear, biological and chemical industries, border and coastal defenses. The Optical platform camera system integrated multi-spectrum detection modules such as high-definition visible light camera, full HD uncooled thermal imager, near-infrared laser illumination, etc.,

and can be equipped with laser range finder, electronic compass, automatic tracking, intelligent analysis, etc.

The module realizes the functions of all-weather and all-time full-dimensional discovery, positioning,

tracking, identification and tracking of targets, and the operating distance can reach more than 20km. The optical platform camera system can be fixedly erected or used in vehicles. It is adopts military quality design, and the overall shell is made of super cast aluminum material, and the protection level reaches IP66/IP67, which effectively ensures the long-term stable operation of the equipment in the harsh field.

In conclusion, the Long Range Thermal Camera is a versatile and reliable solution for long-distance thermal monitoring and surveillance needs. With its advanced features, including a wide tilt range, high resolution, broad spectral range, durable construction, and wide temperature operating range, this thermal imaging camera is a valuable asset for security, defense, industrial, and research applications.

Features:

1.Proper functioning in severe environment: reinforced aluminum alloy housing.

2. Wide coverage: azimuth rotation range 0°～360°, pitch rotation range -90°～+90°, realizing no dead angle detection and full-dimensional coverage

3. Fast turning speed: The turning speed can reach 80°/s, the acceleration can reach 100°/s2, it starts and stops quickly, and runs smoothly, which is helpful for capturing and tracking fast moving targets;

4. High control accuracy: using precision angle encoder and high-precision closed-loop servo control system, positioning accuracy can reach 0.01°, high-performance image processing unit with high-precision focus control mechanism to achieve precise automatic focusing;

5. Excellent tracking performance: The automatic tracking module designed with a variety of advanced target acquisition algorithms and tracking algorithms, supplemented by high-precision servo control, tracking accuracy can reach ±0.5mrad, to ensure stable tracking of the target during fast flight and change of direction

Technical Parameters:

Applications:

Mainly used in anti-UAV control, low-altitude air defense, military base security monitoring, airport monitoring, oil field and oil depot security.

The Hope-Wish Long Range Thermal Camera, model HP-, is a premium thermal imaging camera designed for long-distance surveillance and monitoring. With its advanced PTZ Thermal sensor technology, this camera is capable of detecting targets at extended ranges with high accuracy and clarity.

Originating from China, this state-of-the-art thermal camera is built to deliver exceptional performance in various application occasions and scenarios:

1. Border Security: The Hope-Wish Long Range Thermal Camera is ideal for border surveillance, providing long-range detection capabilities to monitor and secure national borders effectively.

2. Perimeter Protection: This thermal imaging camera is perfect for use in critical infrastructure protection, such as airports, power plants, and military bases, where long-distance monitoring is essential for early threat detection.

3. Wildlife Monitoring: With its high resolution of 640x512 and spectral range of 7.5μm to 14μm, this camera is well-suited for wildlife monitoring applications, allowing researchers and conservationists to observe animals from a safe distance without disturbing their natural habitat.

4. Search and Rescue Operations: The Hope-Wish Long Range Thermal Camera can be used in search and rescue missions, helping locate missing persons or survivors in vast and challenging terrains where traditional search methods may fall short.

Weighing only 15kg, this long-range thermal camera is relatively lightweight and can be easily mounted on poles, vehicles, or other platforms for flexible deployment. Its tilt range of -45 ° to +90 ° further enhances its versatility, enabling users to adjust the viewing angle as needed.

Whether it's for security, surveillance, wildlife observation, or emergency response, the Hope-Wish Long Range Thermal Camera is a reliable and efficient solution for various long-range thermal imaging needs.

Company:

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.

Support and Services:

The Long Range Thermal Camera product comes with comprehensive Product Technical Support and Services to assist customers in maximizing the benefits of their device. Our team of experts is available to provide guidance on installation, setup, troubleshooting, and maintenance of the camera. The technical support services also cover software updates, firmware upgrades, and compatibility with other systems.

FAQ:

Q: What is the brand name of this thermal camera?

A: The brand name of this thermal camera is Hope-Wish.

Q: What is the model number of this long-range thermal camera?

A: The model number of this thermal camera is HP-.

Q: Where is this long-range thermal camera manufactured?

A: This thermal camera is manufactured in China.

Q: What is the maximum range of this thermal camera?

A: The maximum range of this thermal camera is [insert range here] meters.

Q: Does this thermal camera come with any specific software for data analysis?

A: Yes, this thermal camera comes with proprietary software for data analysis and visualization.
