제품 상세 정보:
|
| 프레임 속도: | 30 HZ | 경사: | 90 ° |
|---|---|---|---|
| 저장 온도: | +70' Ｃ에 대한 -30' Ｃ | 작동 온도: | -20 ° C ~ +60 ° C |
| 유형: | PTZ 열화상 카메라 | 경보: | 모션 감지, 온도 알람 |
| 습기: | 95% RH | 팬: | 360' 연속적인 회전 |
| 강조하다: | PTZ thermal imaging smart camera,multi-sensor IOT security camera,auto focus thermal surveillance camera |
||
Invest in the PTZ Thermal Imaging Camera today and experience the power of state-of-the-art thermal imaging technology for your scope thermal needs.
| Model | HP-DMS10-12300-50 |
| Detection |
vehicles:4200m human: 1640m fire point (@2x2m): 2000m |
| Recognition |
vehicles:1200m human: 600m |
| Thermal imaging Camera |
1.Detector: The sixth generation uncooled focal plane array VOx detector 2. Wavelength: 8～14μm 3. NETD:40mK(@25℃ F1.0) 4. Lens:50mm 5. Image enhancement: SDE digital image enhancement technology, enhance the details of the image, support 255 thermal image enhancement adjustment 6.Pseudo-color polarity: 16 kinds of pseudo-color images, hot black/hot white 7.Image parameters: AGC automatic gain control, brightness, contrast 8.Electronic zoom: 1.0～8.0×continuous zoom (step length 0.1), support global eagle eye diagram 9. Ranging ruler: support for range finding ruler 10.Dead pixel correction: support the function of dead pixel correction 11.Image correction: support manual correction, background correction, automatic correction time interval, adjustable Gamma correction parameters 12.Strong light protection: support anti-sun damage 13.Non-uniformity correction: automatic/hand |
| Resolution | Pixel:1280×1024 |
| Visible Camera |
1.Sensor type: back-illuminated ultra-low illumination starlight CMOS 2.Minimum illumination: color: 0.0005Lux @ black and white: 0.0001Lux @ 0Lux(IRON) 3.Lens:7mm～330mm, 47 times optical zoom,16 times digital zoom. 4.Image processing: white balance, electronic shutter, frame accumulation, backlight compensation, glare suppression, 2D/3D digital noise reduction, electronic anti-shake, wide dynamic. 5.Day and night light: 0.4-0.75um visible light wide spectral window and 0.8-0.95um near-infrared spectral window day and night independent double light window, improve the signal-to-noise ratio of imaging light and stray light 6.Support electronic fog penetration and optical fog penetration |
|
Laser illuminator |
1.Laser Homogenization: new infrared GHT-III HD flood light source, no scattered particles 2.Laser angle: 3°~65° switchable 3.Laser distance: 300m |
| Video audio |
1.Thermal camera resolution:support 1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240 2.Visible camera resolution:2592×1520；2560×1440；1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240 3.Video encoding: H.265/H.264/MJPEG,multi-stream support 4.Video code rate:32Kbps～16Mbps 5.Audio encoding:G.711A/ G.711U/G726 6.Image flip: left and right / up and down / diagonal 7.OSD settings: Support OSD display settings for channel name, time, gimbal orientation, field of view, focal length, and preset bit name settings |
| Intelligent functions |
1. Fire detection alarm: threshold 255 levels, target size, number of targets 1-16 can be set, automatically select the most prominent target display, hot spot tracking 2. Intelligent analysis: support intrusion detection, boundary crossing detection, entering/leaving area detection, motion detection, wandering detection, people gathering, fast moving, target tracking, items left behind, items taken; people/vehicle target detection, face detection; and support 16 area settings; support intrusion detection people, vehicle filtering filtering function; support target temperature filtering filtering function 3. Automatic tracking: support single scene tracking/support multi-scene tracking/support panoramic tracking/support alarm linkage tracking 4. Intelligent information fusion: support 512 AR intelligent information fusion, support fire point, intelligent analysis of the recording logo information fusion, support orientation angle, field of view angle, focal length, multiplier information fusion 5.Image fusion: support 18 kinds of double light fusion mode, support picture-in-picture function 6.Alarm management: support for alarm capture and upload |
| Enhanced Features |
1. Distance measurement: support passive distance measurement; support optional laser distance measurement. 2. Support sound and light alarm: internal integrated tweeter + flashing light, support alarm sound customization. 3. Support alarm linkage fire fighting device. 4. Camera diagnostic functions: support disconnection alarm, support IP conflict alarm, support illegal access alarm (illegal access times, lock time can be set), support SD card abnormal alarm (SD space is insufficient, SD card error, no SD card), video masking alarm, anti-sun damage (support threshold, masking time can be set). 5. Whole life management: health index record function, support working time, shutter count, working temperature, limit temperature, etc.; zoom lens and head each motor working cumulative time, etc. 6. Support disconnection renewal. 7. Power failure memory: support can restore the position before power failure, preset point state, cruise state, line sweep state. 8. Remote maintenance: with fault query, self-test, remote restart function; online upgrade, remote upgrade. 9. Key frame setting: support key frame interval 100 levels adjustable. 10. Configuration file: support configuration file import and export function. 11. Web access: support WEB full function configuration, remote online upgrade. |
| PT |
1. Rotation speed: Horizontal: 0.01°/s～100°/s; Pitch: 0.01°/s～80°/s, support focal speed adaption. 2. Rotation angle: horizontal: 360° continuous rotation; pitch: -90°～+90° 3. Structure material: quasi-spherical design of micro-rotary, integrated 5-window multi-channel, fine cast high strength aluminium alloy material. 4. Window glass: infrared/visible high efficiency optical glass, clean film coating. 5. Surface coating: PTA triple anti-corrosion coating, anti-corrosion. 6. Wiper: support intelligent automatic wiper 7. Defrost: visible window defrost 8. Preset position cruise: 3000 preset positions, support 16 cruise routes, each can support 256 preset positions 9. Watch function: preset bit / pattern scan / cruise scan / vertical scan / frame scan / panorama scan / apple skin scan / horizontal fan sweep line scan 10. Support 3D frame selection zoom 11. Orientation information: support angle query/real-time return and positioning; support lens field of view return and positioning 12. Zero point correction: support northward zero point remote correction function |
| Electrical interface |
1. Communication and control: 1 *RJ45 Ethernet port; 2* alarm inputs, 1 *alarm output; 1 *audio input input, 1 *RS485 interface. 2. Protocol: Support HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP network protocols; support ONVIF and GB28181 protocols. 3. Development interface: Support HP-SDK secondary development |
| Enhanced Function |
1. Glare protection: support, anti-sun burn function 2. Temperature correction: no thermal image design, imaging resolution is not affected by temperature 3. Scene mode: support multiple configuration scenarios, adapt to no environment application 4. Auto focus tuning: support remote auto focus precision parameter adjustment, adapt to different scenes 5. Day and night cruise: day and night group cruise different preset groups, day cruise 1-40 preset position, night cruise 41-80 preset position, automatically switch day and night according to the photosensitive state, adapt to different time and space scenes 6. Lens servo: support lens preset position, focal length return, focus positioning function 7. Parameter setting: OSD menu remote call operation 8. Remote maintenance: support embedded program remote upgrade for easy after-sales maintenance |
| Safety control |
1. Support illegal access alarm: the number of illegal access, lock time can be set.
|
| Power supply |
1. Working voltage: DC 9~36V, external AC220V or battery power adapter
|
| Environmental adaptation |
1. Working temperature: -40℃～60℃
|
| Volume weight |
1. Weight: ≤10kg
|
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

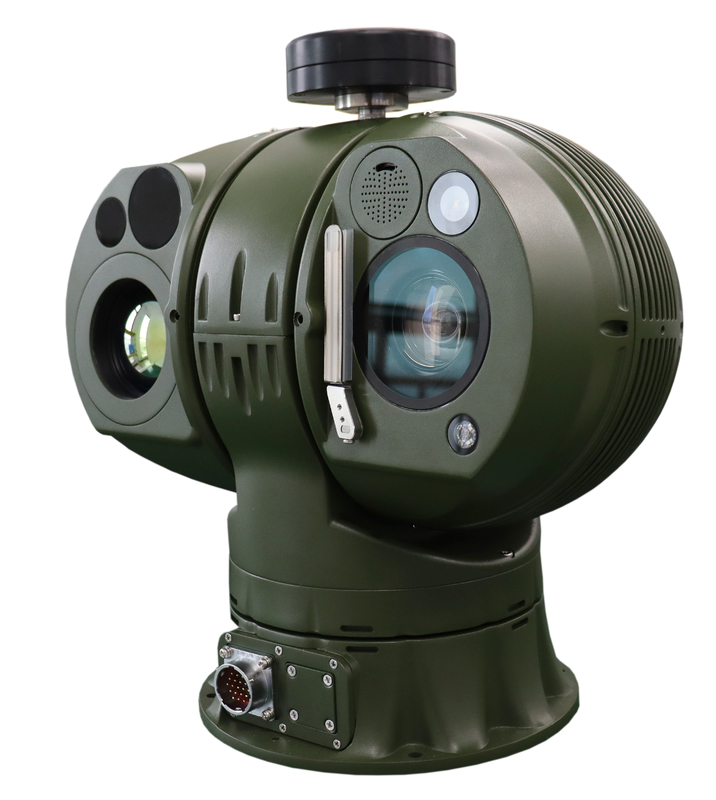

The Hope-Wish PTZ Thermal Imaging Camera, model HP-DMS, is a versatile and advanced thermal infrared camera designed for various applications. With its high-quality features and reliable performance, this product is suitable for a wide range of scenarios.
Product Application Occasions and Scenarios:
1. Surveillance and Security: The Hope-Wish PTZ Thermal Imaging Camera is ideal for surveillance and security purposes due to its thermal infrared camera capabilities. It can be used in both indoor and outdoor settings to monitor and detect any unusual activities or objects.
2. Industrial Inspections: This thermal IP camera is well-suited for industrial inspections in manufacturing plants, refineries, and other industrial facilities. Its ability to operate in temperatures ranging from -20°C to +60°C makes it suitable for harsh environments.
3. Search and Rescue Operations: The HP-DMS model can be used in search and rescue operations, especially in low visibility conditions. Its 10x optical zoom and auto/manual focus features enable users to identify targets accurately and efficiently.
4. Wildlife Monitoring: Wildlife researchers and conservationists can benefit from using the Hope-Wish PTZ Thermal Imaging Camera for wildlife monitoring purposes. The camera's ability to withstand up to 95% RH humidity levels makes it suitable for outdoor use in various weather conditions.
5. Outdoor Events and Sports: Event organizers and sports facilities can utilize this thermal imaging camera for security monitoring during outdoor events and sports activities. Its HDMI and USB image output options allow for easy connectivity to display screens and recording devices.
Overall, the Hope-Wish PTZ Thermal Imaging Camera, manufactured in China, offers a reliable and efficient solution for a wide range of applications. Whether it's for surveillance, industrial inspections, search and rescue operations, wildlife monitoring, or outdoor events, this thermal imaging camera is a versatile tool that meets the needs of different industries and scenarios.
The PTZ Thermal Imaging Camera is equipped with advanced technical support and services to ensure optimal performance and customer satisfaction. Our dedicated team of experts is available to provide assistance with product setup, troubleshooting, and maintenance. Additionally, we offer training programs to help users maximize the capabilities of the camera and stay updated on the latest features and technologies.
Product Packaging:
The PTZ Thermal Imaging Camera is carefully packaged to ensure its safety during transportation. It is securely placed in a sturdy cardboard box with ample cushioning to prevent any damage. The camera is also protected with foam inserts and plastic wrapping to maintain its pristine condition.
Shipping:
Orders for the PTZ Thermal Imaging Camera are processed promptly to ensure timely delivery. The camera is shipped using a reputable courier service that offers tracking information for customers to monitor the status of their shipment. We take great care in handling and shipping the camera to guarantee that it arrives at its destination in perfect working order.
Q: What is the brand name of this PTZ Thermal Imaging Camera?
A: The brand name of this PTZ Thermal Imaging Camera is Hope-Wish.
Q: What is the model number of this PTZ Thermal Imaging Camera?
A: The model number of this PTZ Thermal Imaging Camera is HP-DMS.
Q: Where is this PTZ Thermal Imaging Camera manufactured?
A: This PTZ Thermal Imaging Camera is manufactured in China.
Q: What are the key features of the Hope-Wish HP-DMS PTZ Thermal Imaging Camera?
A: The key features include pan-tilt-zoom functionality, thermal imaging capability, high resolution, and advanced image processing.
Q: Is the Hope-Wish HP-DMS PTZ Thermal Imaging Camera suitable for outdoor use?
A: Yes, this camera is designed for outdoor use and is built to withstand various environmental conditions.
